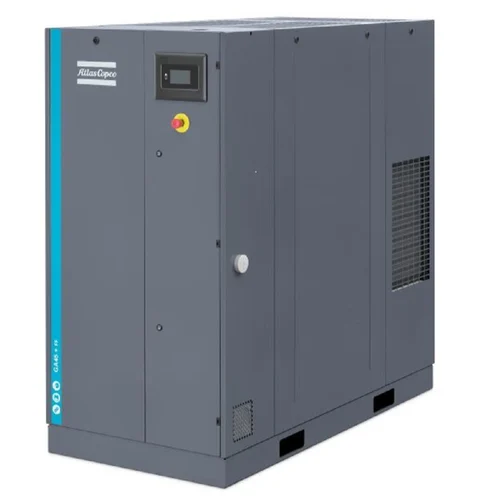

Rotary Screw Air Compressor
| Horse Power | 120 HP |
| Brand | Atlas Copco |
| Compressor Technology | Screw Compressor |
| Model Name/Number | ZR 90 VSD FF |
| Compressor Noise Level (Db) | 74 dB |
| Weight | 1925 Kg |
| Voltage | 10 HP |
| Country of Origin | Made in India |
| Installed Motor | 90 kW |
| Working Pressure (Min) | 4 bar(e) |
| Working Pressure(Effective) | 7 bar(e) |
| Working Pressure(Max) | 8.6 bar(e) |
| Free Air Delivery(Min) | 4.6 – 15.5 m3/min |
| Free Air Delivery(Effective) | 4.5 – 15.5 m3/min |
| Free Air Delivery(Max.) | 4.4 – 14.4 m3/min |
| Dimension | 85.8×57.1×86.0 Inch |
Energy recovery
• With our integrated energy recovery system, it is feasible to recover up to 90% of the power input as hot air or hot water.
• Important energy cost savings and a high return on investment through efficiency usage of the recovered energy.
• Applications: preheated boiler feed water for industrial processes, space heating by circulation in radiators or for showers and other industrial applications like dyeing textiles, operation of absorption chillers and others.
Water separator
• The labyrinth design efficiently separates the condensate from the compressed air.
• Low moisture carry-over protects downstream equipment.
• Long high pressure element lifetime.
• Better dryer performance.
Efficient & reliable water cooling (ZR)
• Corrosion resistant stainless steel tubing.
• Highly reliable robot welding; no risk of leaks.
• Aluminium star insert increases heat transfer.
Full Feature
• Compact, all-in-one quality air solution.
• Integrated package offering the highest quality air at the lowest possible cost.
• IMD adsorption dryer: – Eliminates the moisture before it enters the air net, ensuring a reliable process and an impeccable end product. – No external energy is needed to dry the air, resulting in large savings in comparison to conventional dryers. – The pressure drop through the dryer is minimal, which again cuts down the operating cost.
Totally Enclosed Motor
• IP55 TEFC protection against dust and humidity.
• Highly efficient fixed speed motor according to IE3 (equal to NEMA Premium).
Effective electronic regulating drains
• Reliable solid state actuation, no loss of air. • Alarm for malfunction on the Elektronikon® display.
