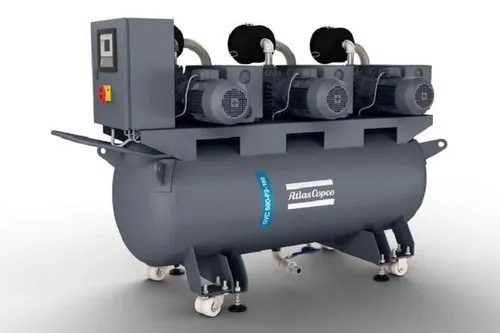

Small Vacuum System
Product Price: Rs 1.25 Lakh / Piece
Product Details:
| Power | 10 HP |
| Model Name/Number | GVC 500 P3 100 |
| Brand | Atlas Copco |
| Country of Origin | Made in India |
| Vessel volume | 500 L |
| Pumping speed | 293 m3/h |
| Ultimate pressure | 0.5 mbar(a) |
| Number of Pumps | 3 |
| Installed Power | 6.6 kW |
| Dimension | 1976 x 847 x 1431 MM |
| Weight | 607 Kg |
| Inlet /Outlet Connections | G 2 / G 1 1/4 Inch |
| Noise level | 66 dB |
Plug and play
The system are provided with a tank, an electrical cabinet with controller and a filter in front of all the pumps – so ready to use.
Benefits you can count on
Due to the use of our new GVS A oil-sealed vane vacuum pumps, the GVC Systems ensure high reliability through a rugged design and optimal oil retention at all operating pressures maintaining low noise and vibration levels.
Due to the use of our new GVS A oil-sealed vane vacuum pumps, the GVC Systems ensure high reliability through a rugged design and optimal oil retention at all operating pressures maintaining low noise and vibration levels.
Energy savings
Thanks to the regulation on the pressure, the GVC allows to save significant energy savings in running only when vacuum is needed.
Thanks to the regulation on the pressure, the GVC allows to save significant energy savings in running only when vacuum is needed.
Modular
These mini systems can be composed with 1 to 3 pumps with the same motor size for flow between 1*25 m3/h (1*14 cfm) and 3*300 m3/h (3*176 cfm).
Plug & play installation and with the possibility of pressure regulation, the GVC allows significant energy savings.
A central vacuum system allows to remove the oil emissions and noise from the production area, and warranty a better environment for the operators.
A central vacuum system means as well more reliability; no production stop due to a failure on one vacuum pump.
These mini systems can be composed with 1 to 3 pumps with the same motor size for flow between 1*25 m3/h (1*14 cfm) and 3*300 m3/h (3*176 cfm).
Plug & play installation and with the possibility of pressure regulation, the GVC allows significant energy savings.
A central vacuum system allows to remove the oil emissions and noise from the production area, and warranty a better environment for the operators.
A central vacuum system means as well more reliability; no production stop due to a failure on one vacuum pump.
Easy service – each pump can be isolated at any moment. Besides, oil thermal switch, oil level monitor and overpressure indicator on the filters are provided in standard
User-friendly monitoring with PLC controller – MK5 controller on the Full Feature
Two GVC versions are available: BASIC and Full Feature.
User-friendly monitoring with PLC controller – MK5 controller on the Full Feature
Two GVC versions are available: BASIC and Full Feature.
Technical product specifications
Typically consisting of – up to 3 GVS A pumps (from 25 to 300 m3/h / from 14 to 176 cfm) – buffer vessel – manual valve – dust filter at the pump inlet – pressure gauge/sensor – two-stage pressure controller – electrical cabinet with controller – all connecting components
Typically consisting of – up to 3 GVS A pumps (from 25 to 300 m3/h / from 14 to 176 cfm) – buffer vessel – manual valve – dust filter at the pump inlet – pressure gauge/sensor – two-stage pressure controller – electrical cabinet with controller – all connecting components
